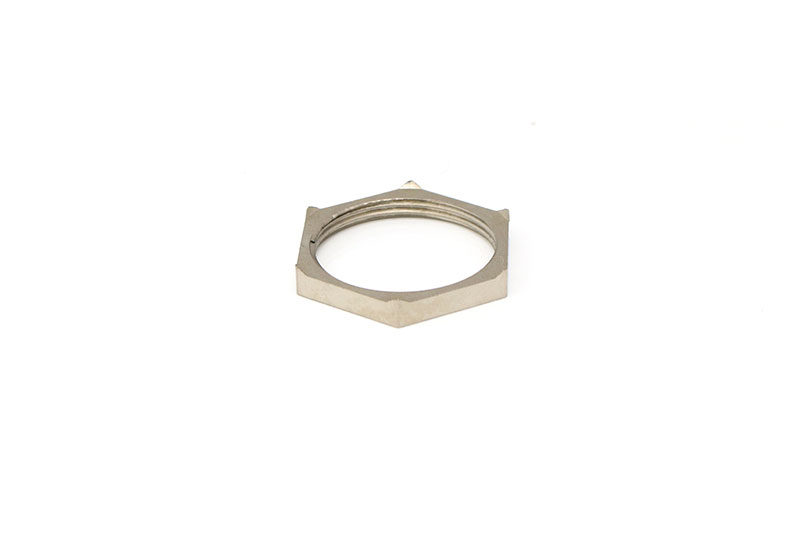

金屬薄型六角螺母配套防爆格蘭頭規格齊全可非標定做
分類：防爆格蘭頭
型號：GM
品牌：ATR
產地：寧波市奉化區
廠家：奉化市安泰爾電器有限公司
產品詳情
GM系列-金屬螺母
產品概述
材料：黃銅鍍鎳/黃銅鍍鋅，任何螺紋都可以定制配套使用
結構圖
技術參數
GM-M 公制螺母
| 規格型號 | 螺紋規格 | 扳手尺寸 | 厚度 |
| GM-M12 | M12*1.5 | 14 | 2.5 |
| GM-M16 | M16*1.5 | 18 | 3 |
| GM-M18 | M18*1.5 | 20 | 3 |
| GM-M20 | M20*1.5 | 22 | 3 |
| GM-M22 | M22*1.5 | 24 | 3 |
| GM-M24 | M24*1.5 | 27 | 3.2 |
| GM-M25 | M25*1.5 | 27 | 3.2 |
| GM-M27 | M27*2.0 | 30 | 3.5 |
| GM-M3O | M30*2.0 | 32 | 3.5 |
| GM-M32 | M32*1.5 | 35 | 4.5 |
| GM-M33 | M33*2.0 | 36 | 4 |
| GM-M36 | M36*2.0 | 40 | 4 |
| GM-M4O | M40*1.5 | 45 | 5 |
| GM-M42 | M42*2.0 | 50 | 5 |
| GM-M48 | M48*2.0 | 52 | 5 |
| GM-M50 | M50*1.5 | 55 | 5 |
| GM-M63 | M63*1.5 | 70 | 5.5 |
GM-P PG制螺母
| 規格型號 | 螺紋規格 | 扳手尺寸 | 厚度 |
| GM-P7 | PG7 | 15 | 2.5 |
| GM-P9 | PG9 | 18 | 2.8 |
| GM-P11 | PG11 | 20 | 3 |
| GM-P13.5 | PG13.5 | 22 | 3.2 |
| GM-P16 | PG16 | 24 | 3.2 |
| GM-P21 | PG21 | 30 | 4 |
| GM-P29 | PG29 | 40 | 4 |
| GM-P36 | PG36 | 50 | 5 |
| GM-P42 | PG42 | 60 | 5 |
| GM-P48 | PG48 | 65 | 5.5 |
GM.C系列-金屬螺母
產品概述
材料：黃銅鍍鎳
應用：可磨去絕緣層，達到屏蔽效果
結構圖
技術參數
GM.C-M 公制螺母
| 規格型號 | 螺紋規格 | 扳手尺寸 | 厚度（L1）(mm) |
| GM.C-M16 | M16*1.5 | 20 | 5 |
| GM.C-M20 | M20*1.5 | 24 | 4 |
| GM.C-M25 | M25*1.5 | 30 | 5 |
| GM.C-M32 | M32*1.5 | 35 | 5 |
| GM.C-M4O | M40*1.5 | 45 | 6 |
| GM.C-M50 | M50*1.5 | 55 | 6.5 |
| GM.C-M63 | M63*1.5 | 70 | 7 |
GM-P PG制螺母
| 規格型號 | 螺紋規格 | 扳手尺寸 | 厚度（L1）(mm) |
| GM-P7 | PG7 | 16 | 4 |
| GM-P9 | PG9 | 20 | 4 |
| GM-P11 | PG11 | 22 | 5 |
| GM-P13.5 | PG13.5 | 24 | 5 |
| GM-P16 | PG16 | 27 | 5 |
| GM-P21 | PG21 | 32 | 4 |
| GM-P29 | PG29 | 41 | 5 |
| GM-P36 | PG36 | 52 | 5 |
| GM-P42 | PG42 | 60 | 6 |
| GM-P48 | PG48 | 65 | 6 |
